Kikr Rudy 730 Roller Registration

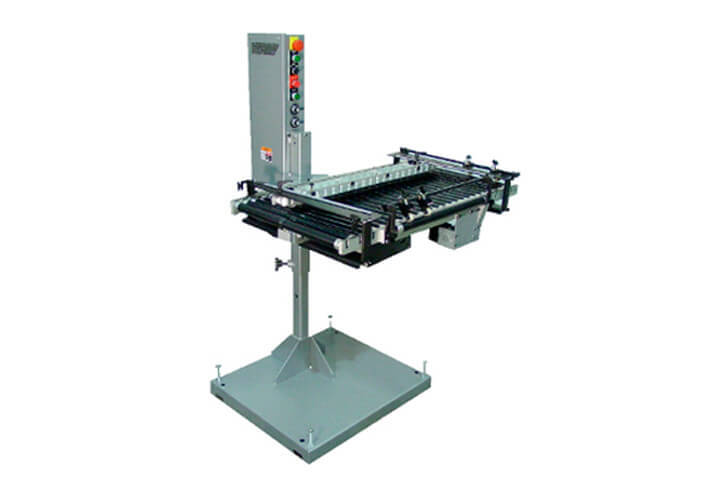

KR730 Roller Registration Conveyor

The KR730 adjusts quickly and easily to accommodate a wide range of material from small 3” x 3” single sheet up to 15” x 15” books. The unique non-angled infeed and outfeed rollers maintain registration integrity.
The unique design of the KR730 allows you to configure it to match your space requirements. Product can exit right, left or straight through. Changeover between exit positions is quick and easy. The versatility of the KR730 separates it from the competition. Invest in the KR730 and find out how a little versatility can make a big difference in your productivity.

**General Specifications

♦ Electrical Requirements: 120VAC, 1PH, 8A, 50-60Hz
♦ Physical Dimensions:
Length: 38.25” (97.2cm)
Width: 34” (86.4cm)
Height: 58.5” (148.6cm) Max Conveyor Height: 37.5” (95.2cm) Minimum Conveyor Height
24.0” (60.94cm) Max Incline/Decline Angle 16 Degrees Max Height Difference: 10” (25.4cm)
♦ Roller Maximum Speed 650’/min (220m/min)
♦ Product Specifications:
Minimum: 3” x 3” (76.2mm x 76.2mm)
Maximum: 15” x 15” (381mm x 381mm) Minimum Thickness: .004” (.102mm)
Maximum Thickness: .25” (6.4mm)
