ArrowJet Aqua 330R
  • ArrowJet Aqua 330R Logo

Product ID: 18814

New Listing

Year: New
Make: ArrowJet
Model: Aqua 330R

Click here to contact us about this product »

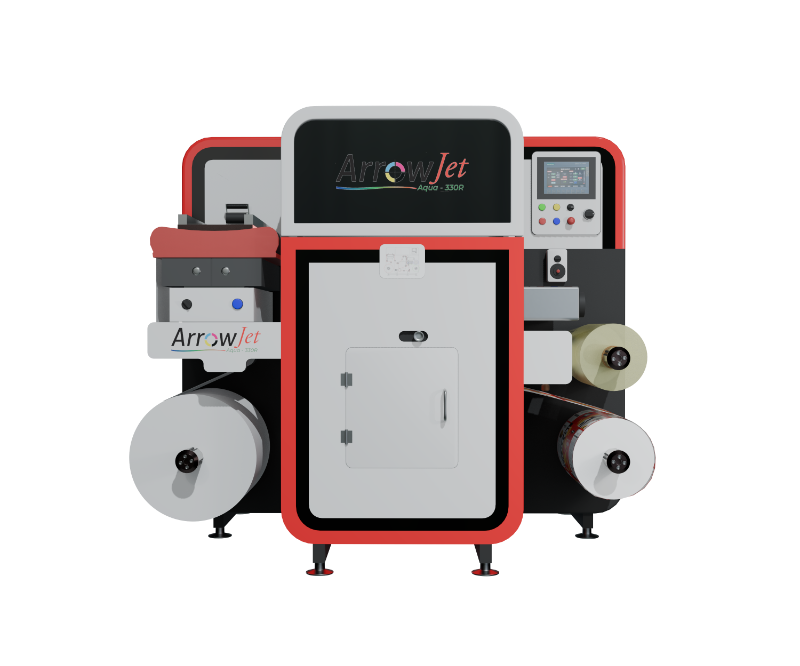

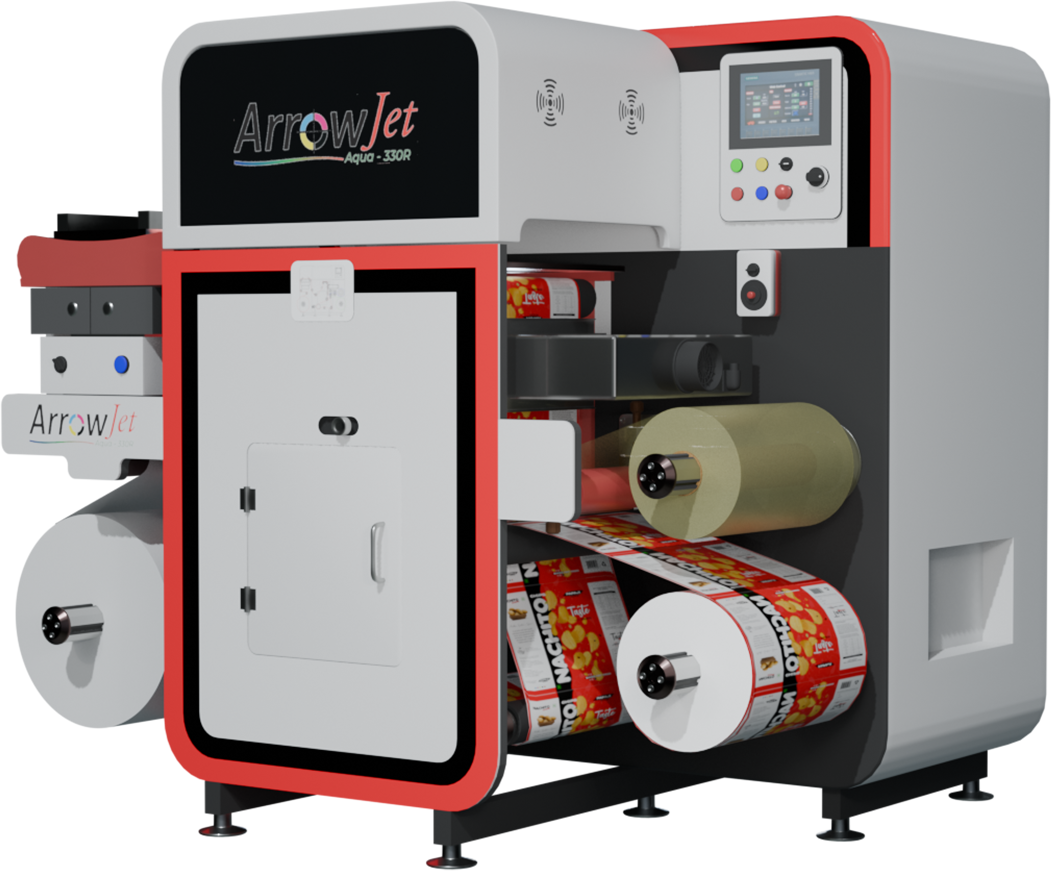

Introducing the ArrowJet Aqua 330R, the latest in digital label printing technology. Utilizing Memjet’s DuraFlex technology, the ArrowJet Aqua 330R prints high resolution labels, flexible packaging, and more at speeds up to 195’/min!

Custom configurations are available for offline printers, as well as fully integrated analog or digital finishing

  • CMYK – High Speed
  • Max. Printing Width12.75
  • Resolution Up to 1600 x 1600 dpi
  • Nestle Guidance Compliant
  • Waterbased Pigment Inks
  • NIR Drying Technology for Higher Speeds
  • Upgradable to 10L Bulk Ink System

High-Speed, Digital Pigment Inkjet Label Printer

The ArrowJet Aqua 330R is a new age digital water based pigment inkjet label printer that delivers super-fast speed with incredible features. It is a high-speed, aqueous pigment, roll-to-roll printer. Using Memjet’s DuraFlex technology, it can print high resolution labels, flexible packaging, and more at a speed of up to 150’/ min.

High-Speed Digital Inkjet Printer for Labels and Flexible Packaging

  • CMYK Single Printhead
  • 1600×1600dpi or 1600×954dpi
  • 90 ft/min (27.4m/min) or 150 ft/min (45.7m/min) printing speed
  • 15” (385mm) max media width
  • 12.75” (324mm) max printing width
  • 19.7” (500mm) max roll diameter
  • 3” (76mm) core size
  • 2 mil (0.05mm) min substrate thickness
  • 13.75 mil (0.35mm) max substrate thickness
  • 2L or 10L CMYK ink Tank options available
  • 68-86 F (20-30 C), 30-50% humidity when operating
  • 50-104 F (10-40C), 65% when storing
  • 71.8”x 56.1” x 57.9” (1825mm x 1425mm x 1471mm) dim
  • Three phase 220V, 6 bar

Options

  • NIR Drying Technology for Higher Speeds
  • Upgradeable to 10L Bulk Ink System

Features

  • Max. Web Width : 385 mm (@ 15”)
  • Min. Web Width : 100 mm
  • Reel Diameter at Unwind : 500 mm (20”)
  • Reel Weight at Unwind : 100 Kgs maximum
  • Reel Diameter at Rewind : 500 mm (20”)
  • Reel Weight at Rewind : 100 Kgs maximum
  • Core Diameter at Unwind & Rewind : 3”
  • Supply Voltage : 220V 3 Phase 60 Hz. AC
  • Printhead : Duraflex (Four Colors (CMYK) in One Printhead with 2x Redundancy
  • Inks : Aqueous Pigment Inks
  • Print Resolution : 1600 x 1600 dpi
