Product ID: 18905
New Listing
Year: New
Make: ArrowJet
Model: EZCut 330A
Click here to contact us about this product »
Roll-to-Roll or Roll-to-Sheet Label Cutter

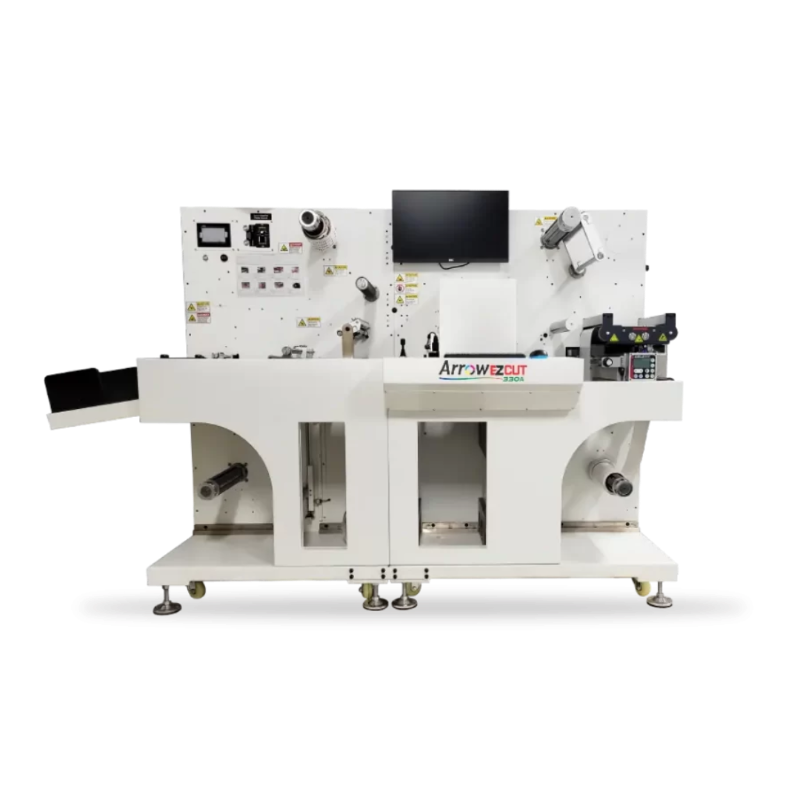

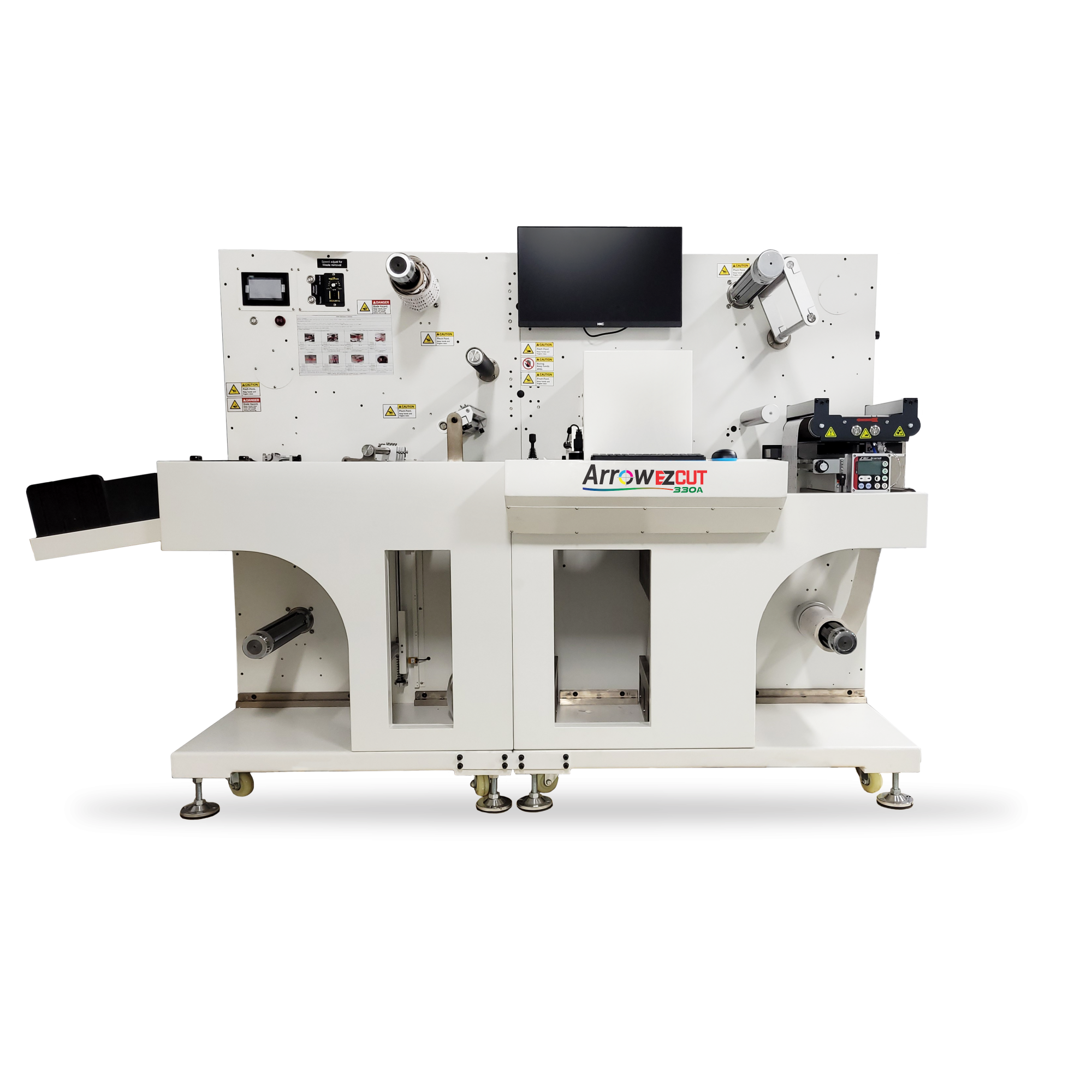

The Arrow EZCut 330A is the worlds first roll-to-roll AND roll-to-sheet digital blade finishing system! It allows customers to digitally die-cut label stock and convert it either roll to roll, or roll to sheet with an inline sheeting unit.
The high speed cutting head is designed to run at speeds up to 9m’/min, and it can be equipped with up to 4 cutting heads at once!
- Max. Media diameter 450mm
- Cutting label size: Max. 330mm x 600mm
- 4 cutting heads
- 9m/min cutting speed
- Cutting accuracy: 0.05mm
- Web guide: BST (made in Germany)
- Slitter: 4 (Max. 15), Ring blade type
- Code scanner: CCD Camera
- Dimensions (WxLxH): 119.5cm x 200cm x 157.5cm
- 1200kgs
- 100-240V AC, 2000W
- Built-in sheeter, Lamination backliner rewinder, 2nd(Up) rewinder
Smartest Blade Finisher on the Market!
The Arrow EZCut 330A is also the first blade cutter designed with the end user in mind. It features an intuitive software which is easy to learn, as well as an inline barcode reader for automatic job changes.
In addition to lamination, slitting, and waste removal, the Arrow EZCut 330A also features an automated web guide to ensure your product is running smooth through the machine at all times.
The Arrow EZCut 330A is perfect for short to medium length print finishing, and even more enticing is the ability to automatically sheet to size without any additional equipment. You can use the sheeting system inline with cutting, or as an offline solution to cut roll products to any length needed!
• All-In-One solution
Lamination, Rewinder for the Lamination Backing, matrix removal,
slitting,
trimming, sheeting
• Artificial Intelligence applied
CCD camera recognizes barcode to select job automatically Distance
between heads can be adjusted automatically by job data
• Trajectory Optimization
It automatically calculates optimal usage of heads in each step of
cutting for a specific job
• 9m/min cutting speed
• Max. 350mm x 600mm size label cutting
• Embedded PC with big LCD touch screen
Features
- Max. Media diameter 450mm
- Cutting label size Max. 330mm x 600mm
- No. of cutting heads 4
- Cutting Speed 9m/min
- Cutting accuracy 0.05mm
- Web guide BST (made in Germany)
- Slitter 4 (Max. 15), Ring blade type
- Code scanner CCD Camera
- Dimensions (WxLxH) 119.5cm x 200cm x 157.5cm
- Weight 1200kgs
- Power 100-240V AC, 2000W
- Option Built-in sheeter, Lamination backliner rewinder, 2nd(Up) rewinder
- Solution Labels & Packaging
