  Arrow EZCut 240+ Brochure

Product ID: 18950

New Listing

Year: New
Make: ArrowJet
Model: EZCut 240+

Click here to contact us about this product »

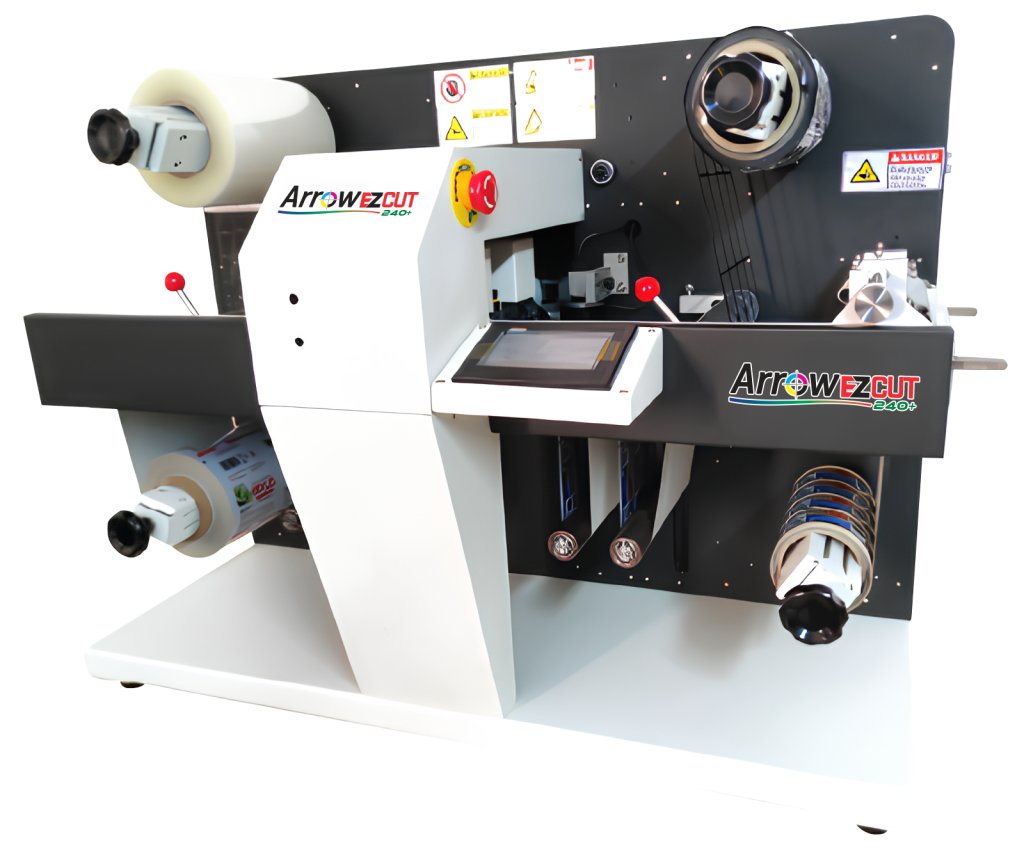

Arrow EZCut 240+ AUTOMATIC DIGITAL ROLL LABEL CUTTER

Arrow EZCut 240+ is updated based on the original desktop digital label die-cutting machine ArrowEZCut240+.

With CCD camera positioning system, the dual heads of Arrow EZCut 240+ will move automatically due to different label shapes, to realize job exchange function, which can meet the needs of customers with small batches and many samples. It is the best competitive label

Auto adjustable dual cutting heads

ArrowEZCut240+ equipped with a dual cutting head system, the gap between heads is adjusted automatically via control system, not manually,
greatly improve the cutting efficiency.

Cold lamination

Automatic lamination before die cutting, makes finishing labels more durable and more widely application.

User friendly touch screen panel

Large size touch screen operation panel, professional UI interface design, in line with user habits, operation is more convenient.

Slitting system

Utilize rotary round blades, automatically cut
the label paper into small rolls as needed,up to 8pcs blades can be used. Maximum slitting speed can reach to 60m/min





Features

• Cutting Technology Advanced digital die cutting with blades
• Cut mode Roll to roll fly
• Maxi. roll diameter 290mm
• Max. die cutting speed 8m/minute (cut 7cmx15cm square)
• Die cutting precision 0.1 mm (repeat)
• Cutting media width 80–240mm
• Max. label width 230mm
• Max. label length 300mm
• Cut track CCD Camera/Blank
• Min. distance from mark to edge 2mm
• Min. distance between jobs 2mm
• No. of cutting heads 2 sets
• Laminating Width 225mm
• Film roll diameter 230mm
• Max. waste roll diameter 300mm
• Slitting speed same with cutting speed
• Slitting width 10-230mm
• Slitting precision 0.1 mm
• No. of slitting blades 4 sets (up to 8 sets)
• No. of rewinder 1 set (3*)
• Machine dimension 91 x 63 x 74cm (LWH)
• Machine weight(N.W/G.W) 120kg/145kg
• Working voltage AC100-240V, 50-60HZ, 1000WATTS
• Data transfer method USB2.0/Ethernet 10/100Base-T/GPIO
• Software VICUT AI SW
• File format PLT, DXF
• Die cutting blades Tungsten steel blades, Rotary round blades
• Slitting blades Marking sensing method
• Auto adjust head distance Auto change cut job
• Other function and device Auto set knife drop point, Waste removal
• Connect printer device Optional
