Streamfeeder Vacuum Transport Conveyors VTC-6 Console

Product ID: 16397

Year: New
Make: Streamfeeder
Model: VTC-6 Console

Click here to contact us about this product »

Streamfeeder Logo

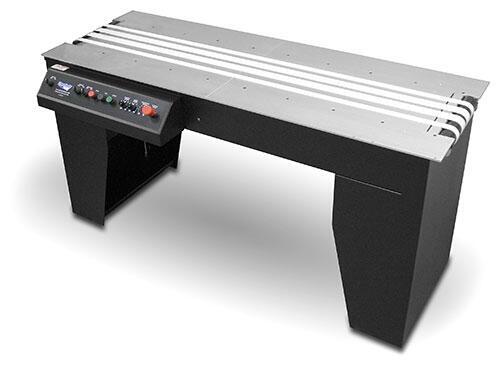

Streamfeeder VTC-6 Console

The Streamfeeder Vacuum Transport Conveyor VTC-6 Console is the ideal multipurpose system to handle scanning, printing, labeling, addressing, tipping/attaching, and more! You can be assured that this conveyor will provide all the flexibility required of fulfillment systems today. The heavy-duty base will provide years of service at an affordable price.

Consistently feed and transport wide variety of flat and multi-thickness products at speeds up to 330 feet per minute for barcode reading, printing, print verification, tipping, and more. The system can be used as an offline production system or simply remove the feeder and put it inline with other production flows.

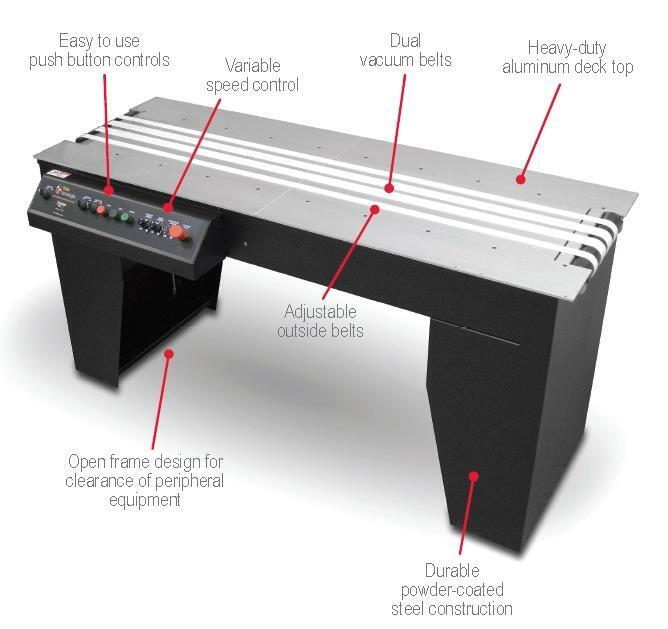

Standard Features:

  • Heavy-duty construction
  • 5-foot deck length
  • Dual vacuum belts
  • Adjustable outside belts
  • Easy to use push button controls
  • Aluminum deck top
  • Variable speed control
  • Adjustable infeed product guides

Optional Features:

  • Streamfeeder friction feeders
  • Stacking conveyor
  • Diverter

Applications:

  • Addressing
  • Labeling
  • Scanning
  • Tip-on/Affixing
  • Verification
  • Tabbing
  • Coding
  • Printing
  • Attaching
  • Date Stamping

Products:

  • Sheet Paper
  • Manuals
  • Cardstock
  • Post Cards
  • Backer Board
  • Collapsed Cartons
  • Envelopes
  • Brochures
  • Folded Documents
  • Folders
  • Booklets
  • and more...

Specifications:

Transport Direction Left to right (optional right to left)
Maximum Product Size 20.0 W x 18.0 L in (508 x 457.2 mm)
Minimum Product Size 2.0 W x 3.0 L in (50.8 x 76.2 mm)
Maximum Product Thickness Up to .5 in (12.7 mm), product dependent
Belt Speed Variable, up to 4500 in/min (114.3 m/min)
Usable Vacuum Area 56 in (142 cm)
Utilities 115vac, 50/60Hz, 7A
Deck Height 33-36 in (84-91 cm)
Warranty One year limited
