Streamfeeder Stand-Alone Shingling Conveyor

Product ID: 16377

New Listing

Year: NEW
Make: Streamfeeder
Model: Stand-Alone Shingling Conveyor

Click here to contact us about this product »

Streamfeeder Logo

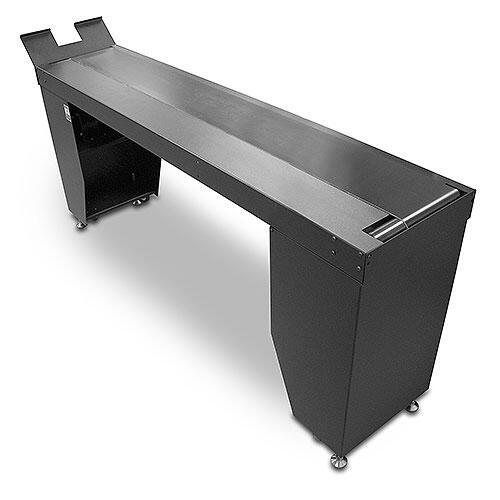

Streamfeeder Stand-Alone Shingling Conveyor

Streamfeeder Automation Accessories

Overview:

The Stand-Alone Shingling Conveyor provies flexibility and versatility wherever product collection is required. The slow-moving esign allows products o be collected in a shingled manner and the amount of shingle can be controlled by the variable speed control. The high-torque drive system is designed to handle large work-loads ensuring years of dependable operation.

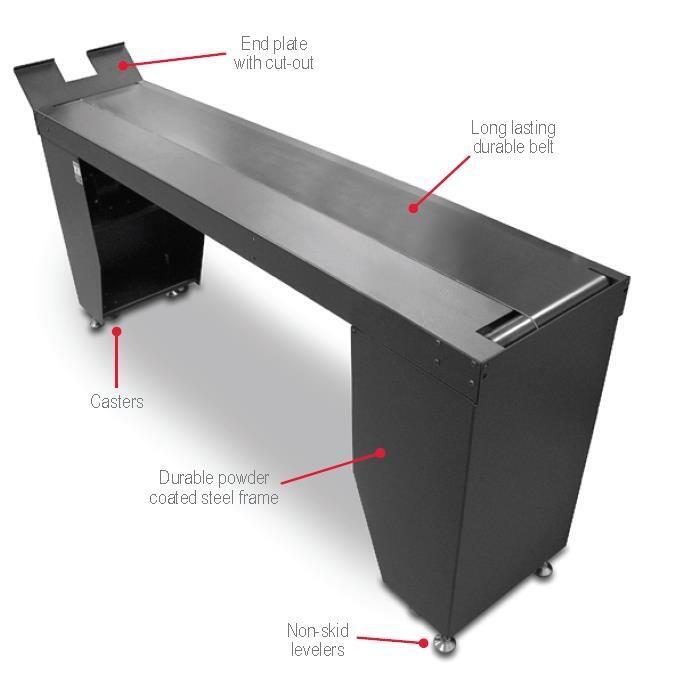

Standard Features:

  • Heavy-duty construction
  • Powder coated steel frame for durability
  • Variable speed control for shingling control
  • Long lasting, durable belt (choose from a single 10" wide belt or two 3" wide adjustable belts)
  • End plate with cut-out for easy and safe removal of collected product
  • Casters for portability
  • Non-skid levelers for variable height adjustment
  • Inline or 90-degree interface to accommodate available floor space

Applications:

  • Addressing
  • Labeling
  • Scanning
  • Tip-on/Affixing
  • Verification
  • Tabbing
  • Coding
  • Printing
  • Attaching
  • Date Stamping

Products:

  • Sheet Paper
  • Manuals
  • Cardstock
  • Post Cards
  • Backer Board
  • Collapsed Cartons
  • Envelopes
  • Brochures
  • Folded Documents
  • Boxes
  • Booklets
  • and more...

Specifications:

Maximum Product Size 12 W x 12 L in (305 x 305 mm)
Minimum Product Size 4 W x 4 L in (102 x 102 mm)
Speed Variable, 63 feet/minute (19.3m/min)
Utilities 115vac, 50/60Hz, 5A
Discharge Height 29.5-33.5 in (75-85 cm)
Dimensions 72 L x 15. W in (183  x 39 cm)
Warranty One year limited
